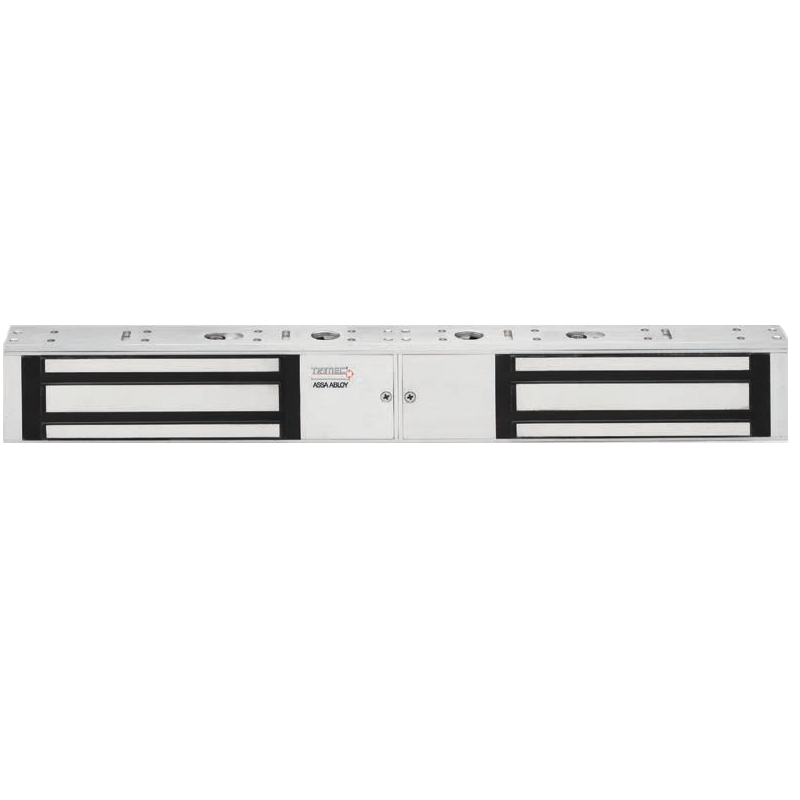

**Key FeaturesFail-safe: unlocks when power is removedEasy installation: suitable for both new and retrofit usageHigh holding force: refer to the technical data overleafSelf-alignment: armature plate pivots to accommodate door dropSilent operation: no humming or buzzingDual voltage: site selectable 12 or 24 VdcInstantaneous Release: smart electronics on the Z Series Electromagnets eliminate residual magnetismApplicationsAluminium doorsGlass doorsIT Storage roomsAccess controlSurface mount for inswing and outswing doorsStandards and ComplianceSuccessfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)CE ApprovedC-Tick CertifiedProduct SpecificationsHolding Force: 1100kg – 1160kgDimensions: (L)532 x (H)72 x (D)40 mmVoltage: 12Vdc/ 24Vdc ±10%Current: 1024mA @ 12Vdc 512mA @ (12Vdc)Monitoring: NoneOperating Temperature: -10 to 55 DegreesOperating Humidity: 0 – 95%
