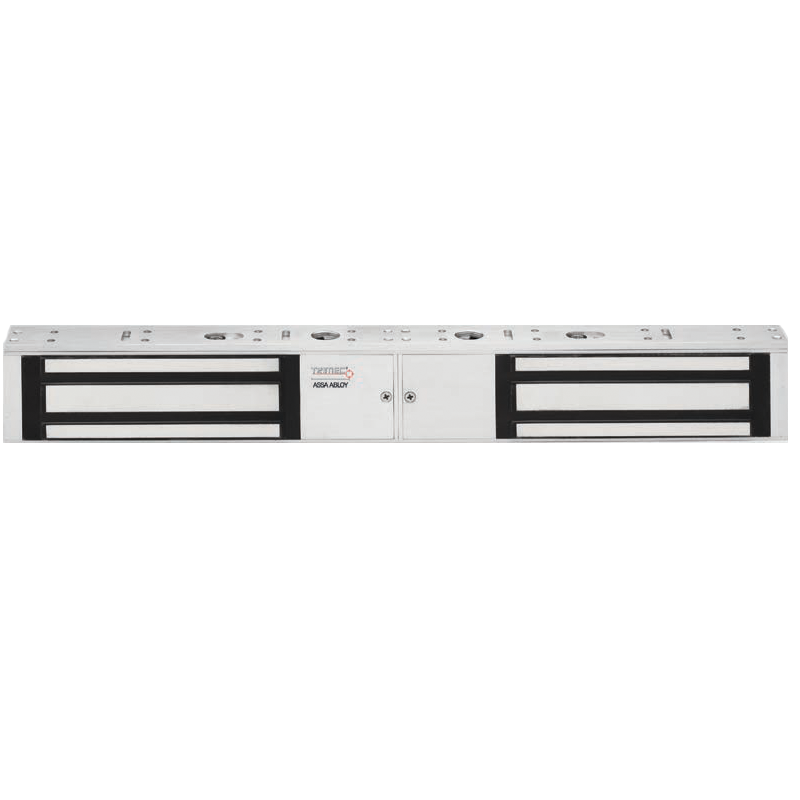

**Key FeaturesFail-safe: unlocks when power is removedEasy installation: suitable for both new and retrofit usageHigh holding force: refer to the technical data overleafSelf-alignment: armature plate pivots to accommodate door dropSilent operation: no humming or buzzingDual voltage: site selectable 12 or 24 VdcMonitoring; Hall-Effect and Reed Switch monitoring on all modelsInstantaneous release: Smart electronics on the Z Series electromagnets eliminate residual magnetismApplicationsAluminium doorsDouble swing doorsAccess controlSurface mount for inswing and outswing doorsMonitoringHall / Bond MonitoringThis indicates that the lock is powered and that the armature plate is in position and magnetically bonded (it monitors if the magnet is locked)Reed Switch MonitoringAn integrated reed switch monitors the door position separately (it monitors the position of the door)Standards and ComplianceSuccessfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)CE ApprovedC-Tick CertifiedProduct SpecificationsHolding Force: 500kg – 560kgDimensions: (L)476 x (H)48 x (D)27 mmVoltage: 12Vdc/ 24Vdc ±10%Current: 900mA @ 12Vdc 450mA @ 24VdcMonitoring: Hall Effect / Bond sensing and Reed SwitchOperating Temperature: -10 to 55 DegreesOperating Humidity: 0 – 95%
