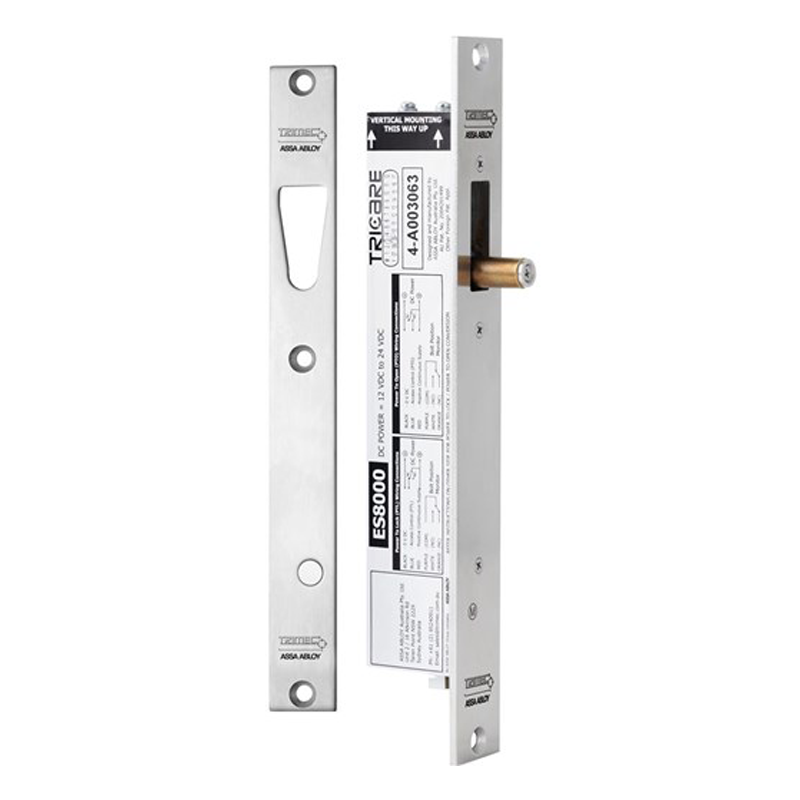

**Key FeaturesSide load – pre load capable lock will unlock with up to 15kg of side pressure, when wired in 3 wire mode. (1 x permanent power, (positive 12-24Vdc) wire. Negative (0 volt return) wire, and 1 x switching input (positive 12-24Vdc) wireDoor misalignment of up to 3.5mm /-Power to Lock (Fail Safe) / Power to Open (Fail Secure) field configurableHigh torque Motorised locking and unlocking (3 wire mode)High Speed Operation. Unlocks in less than 1 secondSurface Mount Accessory Kit. Ideal for 180° swing through glass door applicationsMultiple Orientation – Interior Doors. Can be mounted vertically or horizontally (For exterior doors where water ingress is likely ES8000 must be mounted horizontally)MonitoredCOM, NO, NC Voltage free changeover contacts rated at 48 dc/100mAApplicationsMisaligned doorsTimer DoorsGlass DoorsStandards and ComplianceSCEC Endorsed (Intruder Resistant Bracket Required)Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)SpecificationsVoltage 12 to 24Vdc, Voltage Tolerance 12V ( 15% – 0%) 24V( /- 15%)Current Minimum 1 Amp Regulated SupplyMonitoring COM, NO, NC Voltage free changeover contacts rated at 48 dc/100mASecurity Passed S3 (AS4145.2 -1993)Strength Maximum 1000kg (with supported strike plate)Side Load Side Load rated: Motorised Unlocking – 15kg max at bolt / Fail Safe Unlocking – 3kg max at boltEndurance 300,000 operationsEnvironment Operational temperature range -20°C to 60°CLock Body Stainless Steel Lock Body and FaceplateBolt 11mm diameter, 20.5mm projectionSpecifications StatementThe lock must be a high torque motorised bolt with Preload tolerance. The strike plate must be shaped in a V format to accommodate for misaligned doors. Lock will unlock with up to 15kg of side pressure and will be poweredwith 12-24v and draw no more than 1000mA. The lock must be configurable for Power to Lock (Fail Safe) or Power to Open (Fail Secure). The lock must be triggered with a magnet positioned in strike plate, and be monitored for locked unlocked and door position.
