PINECIL – Smart Mini Portable Soldering Iron V2

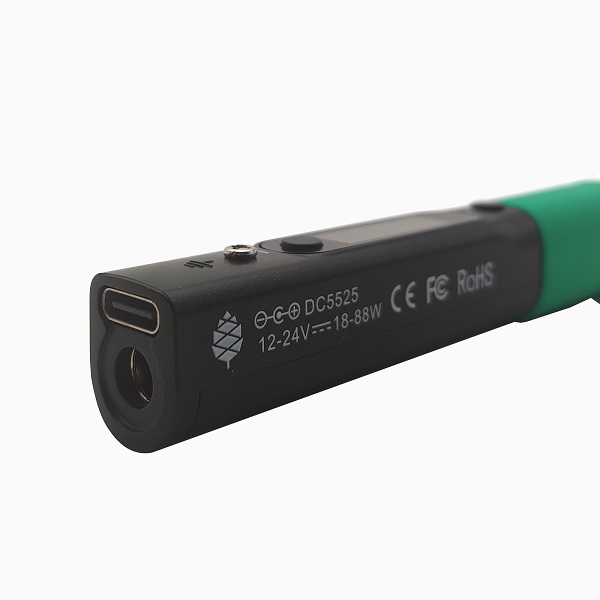

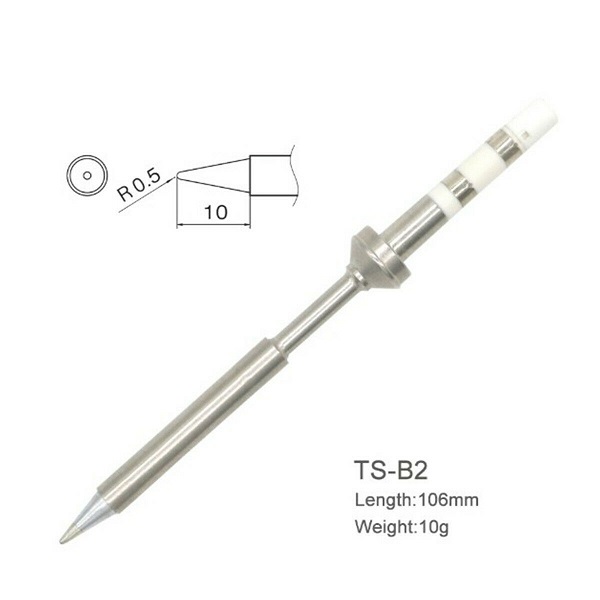

Description New and improved V2 The Pinecil V2 is a natural follow-on from the first version, still using a RISC-V processor, but adding noticeable upgrades to the hardware. Key changes from version one: New Processor (BL706) Adds Bluetooth Low Energy Higher maximum input voltage Tentative support for USB-PD EPR (28V) Support for measuring tip resistance Allows automatic detection of 6.2 vs 8-ohm tips Things staying the same: GPIO is broken out on USB-C for creating your own projects Same pinout as Pinecil V1 Same great feel, including the rubber grip Works with all existing tips Same DC input USB-C input connections Same case as V1 and compatibility with the red and transparent cases A notable improvement is the new BL706 RISC-V processor from Bouffalo. It is similar to the BL602 in the Pinenut from the Nutcracker challenge. The BL706 features Bluetooth Low Energy; so future IronOS releases will work to enable exposing features over Bluetooth Low Energy. One obvious future feature making use of BLE would be OTA firmware updates. The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, auto standby and it heats up to an operating temperature in just 12 seconds! Dual power input design: 1) USB-C supports both PD and QC 3.0 and; 2) DC5525 barrel DC jack. Speedy Rapid Warmup: Reaches operating temperature in 12 seconds. Support for on-demand rapid boost feature. Adjustable soldering tip temperature which can be set between 100° C and 400° C using the adjustment buttons and an easy-to-read OLED display. Portable: it features a sleek and slim design, comprised of an SAE 304 stainless steel core housed inside a poly-carbonate shell. Auto standby mode engages when it is not in use ensuring the user safety. This is the original device and not a Chinese copy. We are approved re-sellers from Pine64. You can check this on the official pine64 wiki page below. Affiliates – PINE STORE (pine64.com)
