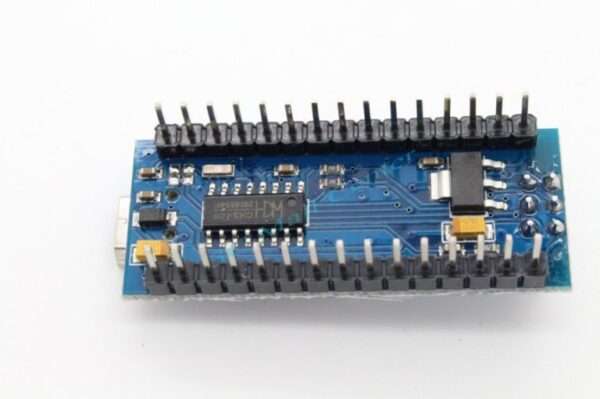

Nano Board R3 CH340 chip With USB Mini Cable compatible with Arduino (soldered)

The Nano Board R3 CH340 chip With USB Mini Cable chipboard is based on famous Arduino platform and does all the functions of Uno, but with a smaller footprint. Nano Board R3 CH340 chip USB Mini Cable is vital for your small project where you don’t need much of a pin-outs but the small size is very important to make it look good. The Nano equips a low-cost USB-Serial Chip that makes it less in price than Nano with FTDI USB-Serial Chip used on older versions of Nano. The Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Nano R3). It has more or less the same functionality of the Uno but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one. The Nano Arduino can be power via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source. The size of Nano V3.0 with CH340 Chip is only 43 mm x 18 mm; it comes with 6 PWM I/O from the total of 14 digitals I/O, 8 analog inputs, 16Mhz clock speed and 32kB of flash memory. Note:- CH340 chip might not work directly with some PC/Laptop, you will need some ch340 drivers. Model Type Nano Color Blue Microcontroller ATmega328 Operating Voltage 5 Input Voltage(Recommended) 7 to 12 V Power Consumption 19 mA Analog I/O Pins 8 Digital I/O Pins 22 PWM Output Pins 6 Architecture AVR Clock Speed 16 MHz DC Current per I/O Pin 40 mA Flash Memory 32 KB of which 2 KB used by bootloader EEPROM 1KB SRAM 2KB Dimensions (mm) LxWxH 45x18x5 Weight (gm) 8 Shipment Weight 0.105 kg Shipment Dimensions 6 × 5 × 3 cm
