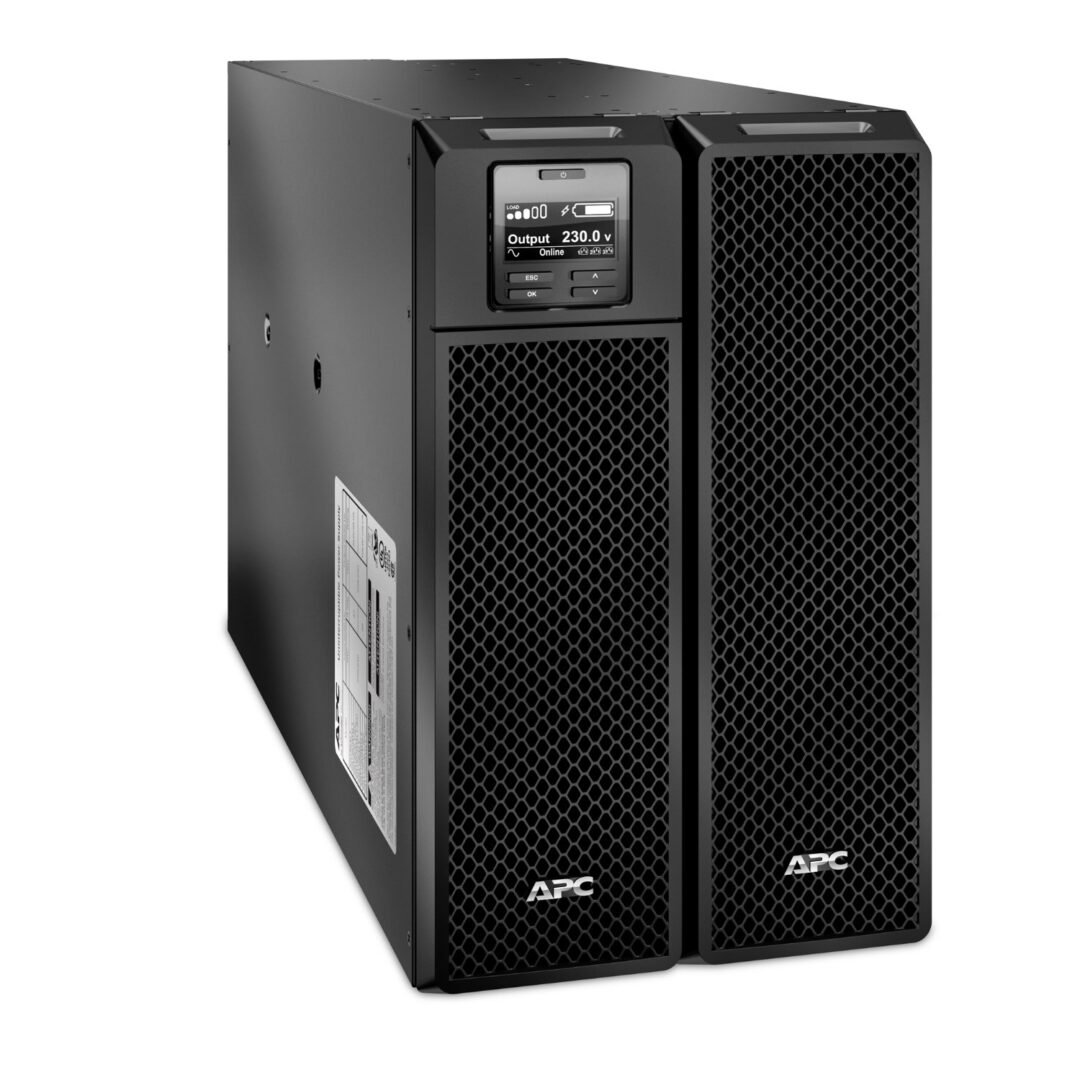

Product Overview SRT8KXLI | APC SMART-UPS SRT 8000VA 230V from APC is a single-phase, double-conversion online UPS designed for high-density IT racks, servers, networking, and critical workloads. It delivers tight voltage regulation, wide input tolerance, and advanced management features for business-critical uptime. Technical Specifications Topology Double-conversion online Power Rating 8000 VA / 8000 W Nominal Output Voltage 230 V (220 V, 240 V user selectable) Output Frequency 50/60 Hz ± 0.1 Hz (user selectable) Online Efficiency (typical, full load) 94% (typical, full load) Green Mode Efficiency (typical, full load) 98% (typical, full load) Output Connections (6) IEC 320 C13, (4) IEC 320 C19; hardwire three-wire (1 PH N G) Nominal Input Voltage 220 V/380 V, 230 V/400 V, 240 V/415 V Input Voltage Range (full / half load) 160/277 – 275/476 V (100/173 – 275/476 V at half load) Input Frequency 40 – 70 Hz auto-selecting Input Connection Hardwire three-wire (1 Ph N G) / hardwire five-wire (3 Ph N G) Battery Type Maintenance-free sealed lead-acid battery with suspended electrolyte, leak proof Typical Backup Time (½ load) 14.5 min Typical Backup Time (full load) 5.2 min Replacement Battery Cartridge APCRBC140 (2) External Battery Pack (tower / rack) SRT192BP2 / SRT192RMBP2 Interface Ports / Management Embedded network management with environmental monitoring (RJ-45 10/100 Base-T) Control Panel High-resolution graphical LCD display Emergency Power Off (EPO) Yes (NO/NC connections) Rack Height 263 mm (6U) Max Width (RM) 432 mm Max Depth (RM) 715 mm Net Weight 112 kg Conformance CE, VDE, RCM, and EAC, IEC/EN 62040-1, IEC/EN 62040-2 Warranty Three years for electronics / two years for battery Datasheet: Download Datasheet upsbase.com is a leading value added distributor and authorized dealer for UPS and VRLA products in the UAE / Africa market.
