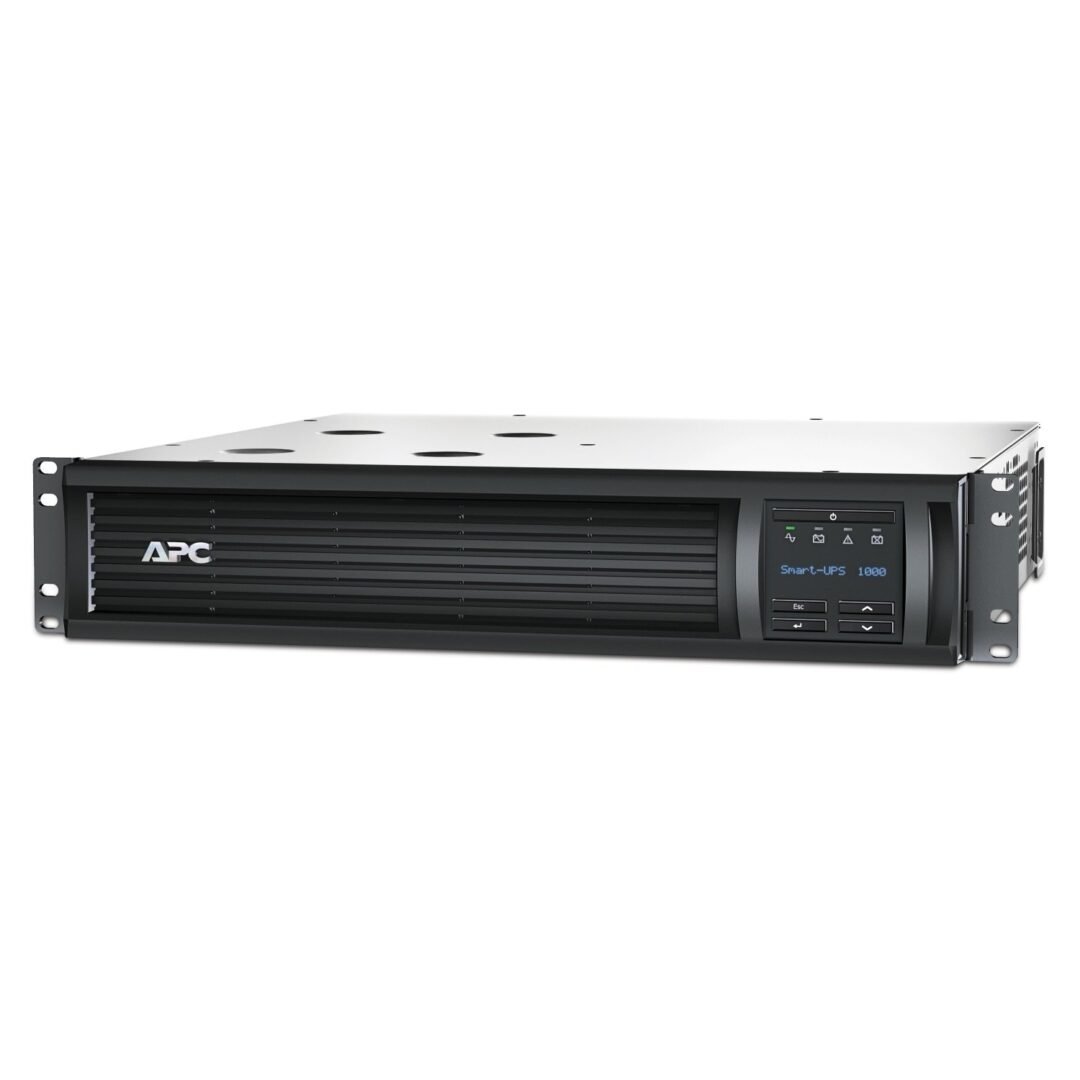

Overview SMT1000RMI2UC from APC is engineered to provide reliable, line-interactive power protection for servers, storage, networking equipment, and business‑critical applications. It helps maintain uptime by regulating voltage and filtering power disturbances. Technical Specifications Output Power Capacity 700W / 1000VA Nominal outputvoltage 230 V (configurable to 220 or 240 V nominal) Output frequency 47 –53 Hz for 50 Hz nominal; 57 –63 Hz for 60 Hz nominal Waveform type Sine wave Outputconnections (NEMA) (8) IEC320 C13, (1) IEC320 C19 Switched outlet groups 1 Input Nominal input voltage 230V Input voltage range for main operations (Maxadjustable) 160 –286V (Max adjustable 150–300V) Inputfrequency 50/60 Hz /-3 Hz (auto sensing) Input connection IEC320 C20 Batteries and runtime Battery type Maintenance-free sealed lead-acid battery with suspendedelectrolyte; leak proof Replacementbattery APCRBC132 Runtime estimates 200W 1:10 500W :17 700W :09 1000W – 1400W – 1600W – Full load :09 Communications and management APC SmartConnect Enabled Yes Interface ports Serial (RJ45), USB, and SmartSlot “NC” versions have AP9631 network management card pre-installed in the SmartSlot Control panel and audible alarms Alpha-numeric LCD display with LED status indicators; alarm on battery, distinctive low battery alarm and configurable delays Emergency power off (EPO) Yes Physical Maximum height (millimeter) 86 Maximum width (millimeter) 432 Maximum depth (millimeter) 477 Net weight (kilograms) 27.1 Conformance Regulatory RCM, CE, EN62040-1, EN62040-2, EAC, VDE Download Datasheet
