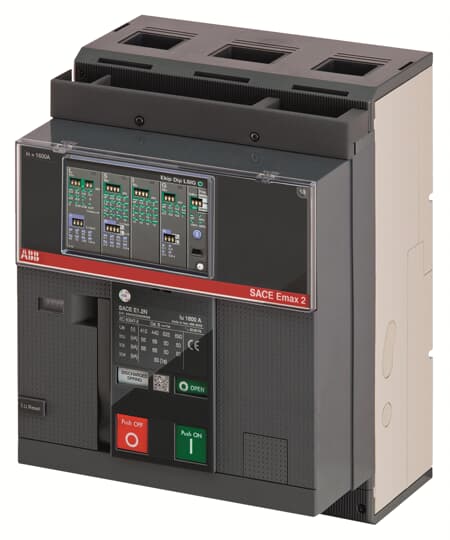

General Information Extended Product Type: E1.2N 1600 Ekip Dip LI 3p F F Product ID: 1SDA070881R1 EAN: 8015644747312 Catalog Description: E1.2N 1600 Ekip Dip LI 3p F F Long Description: C.BREAKER SACE EMAX2 E1.2N 1600 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP/DIP-LI R 1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED Dimensions Product Net Width: 210 mm Product Net Height: 296 mm Product Net Depth / Length: 183 mm Product Net Weight: 14 kg Container Information Package Level 1 Units: 1 piece Package Level 1 Width: 270 mm Package Level 1 Height: 350 mm Package Level 1 Depth / Length: 330 mm Package Level 1 Gross Weight: 16 kg Package Level 1 EAN: 8015644747312 Environmental RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 Additional Information Current Type: AC Electrical Durability: Ue =< 440 V 3000 cycle Ue = 500 … 690 V 6500 cycle 30 cycles per hour Mechanical Durability: 20000 cycle 60 cycles per hour Number of Poles: 3 Power Loss: 201 W Product Main Type: SACE Emax 2 Product Name: Air Circuit Breaker Product Type: Air Circuit Breaker Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics): 100 % Rated Current (In): 1600 A Rated Voltage (Ur): 690 V Rated Impulse Withstand Voltage (Uimp): acc. to IEC 60947-2 12 kV Rated Insulation Voltage (Ui): AC 1000 V Rated Operational Voltage: 690 V AC Rated Service Short-Circuit Breaking Capacity (Ics): (220 V AC) 66 kA (230 V AC) 66 kA (380 V AC) 66 kA (400 V AC) 50 kA (415 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 50 kA (660 V AC) 50 kA (690 V AC) 50 kA Rated Short-time Withstand Current (Icw): for 1 s 50 kA for 3 s 30 kA Rated Ultimate Short-Circuit Breaking Capacity (Icu): (400 V AC) 66 kA (415 V AC) 66 kA (440 V AC) 66 kA (500 V AC) 50 kA (525 V AC) 50 kA (690 V AC) 50 kA Rated Uninterrupted Current (Iu): 1600 A Release: Ekip Dip LI Release Type: EL Short-Circuit Performance Level: N Standards: IEC Sub-type: E1.2 Terminal Connection Type: Front Version: F Certificates and Declarations (Document Number) Data Sheet, Technical Information: 1SDC200023D0209 Declaration of Conformity – CE: 9AKK106713A5546 Environmental Information: Not Available Instructions and Manuals: 1SDH000999R0002 Classifications ETIM 4: EC000228 – Power circuit-breaker for trafo/generator/installation prot. ETIM 5: EC000228 – Power circuit-breaker for trafo/generator/installation prot. ETIM 6: EC000228 – Power circuit-breaker for trafo/generator/installation prot. ETIM 7: EC000228 – Power circuit-breaker for trafo/generator/installation protection
