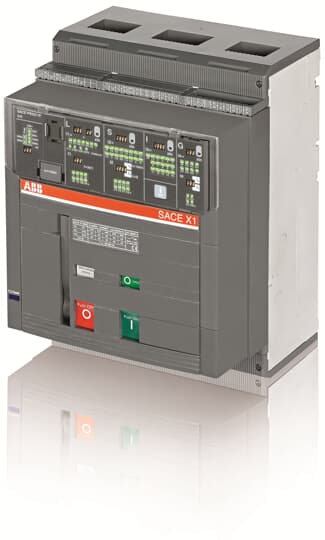

General Information Extended Product Type: X1B1600PR331/PLSIIn=1600A3pFF Product ID: 1SDA062570R1 EAN: 8015644651169 Catalog Description: X1B 1600 PR331/P LSI In=1600A 3p F F Long Description: C.BREAKER EMAX X1B 1600 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR331/P-LSI R 1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED Dimensions Product Net Width: 210 mm Product Net Height: 268 mm Product Net Depth / Length: 181 mm Product Net Weight: 11 kg Container Information Package Level 1 Units: 1 piece Package Level 1 Width: 280 mm Package Level 1 Height: 350 mm Package Level 1 Depth / Length: 360 mm Package Level 1 Gross Weight: 12.5 kg Package Level 1 EAN: 8015644609139 Additional Information Current Type: AC Electrical Durability: Ue =< 440 V 3000 cycle Ue = 500 … 690 V 1000 cycle 30 cycles per hour Mechanical Durability: 12500 cycle 60 cycles per hour Number of Poles: 3 Power Loss: 203 W Product Main Type: SACE Emax Product Name: Air Circuit Breaker Product Type: Air Circuit Breaker Rated Current (In): 1600 A Rated Voltage (Ur): 690 V Rated Impulse Withstand Voltage (Uimp): 12 kV Rated Insulation Voltage (Ui): 1000 V Rated Operational Current (Ie): 1600 A Rated Operational Voltage: 690 V AC Rated Service Short-Circuit Breaking Capacity (Ics): (220 V AC) 42 kA (230 V AC) 42 kA (380 V AC) 42 kA (400 V AC) 42 kA (415 V AC) 42 kA (440 V AC) 42 kA (500 V AC) 42 kA (660 V AC) 42 kA (690 V AC) 42 kA Rated Short-time Withstand Current (Icw): for 1 s 42 kA Rated Ultimate Short-Circuit Breaking Capacity (Icu): (220 V AC) 42 kA (230 V AC) 42 kA (380 V AC) 42 kA (400 V AC) 42 kA (415 V AC) 42 kA (440 V AC) 42 kA (500 V AC) 42 kA (660 V AC) 42 kA (690 V AC) 42 kA Rated Uninterrupted Current (Iu): 1600 A Release: PR331/P LSI Release Type: EL Short-Circuit Performance Level: B Standards: IEC Sub-type: X1 Terminal Connection Type: Fixed Circuit-Breakers Front Version: F Certificates and Declarations (Document Number) Data Sheet, Technical Information: 1SDC200009D0203 Declaration of Conformity – CE: 1SDL000165R0018 Environmental Information: 1SDC200009D0201 Instructions and Manuals: 1SDH000606R0004 1SDH000587R0002 RoHS Information: 1SDL000203R0001
