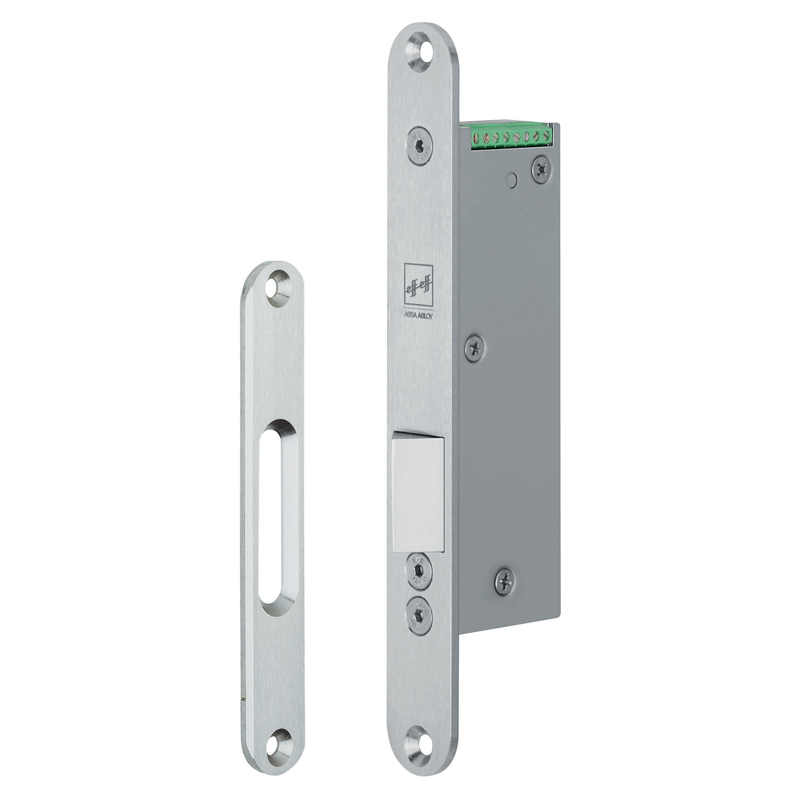

**FeaturesDesigned for double acting and single acting swing doorsMotorized lockingSilent operationVertically or horizontally mounting5000 N holding forceOperates with up to 5000N of side pressureMulti Voltage: 12 V DC – 48V DCDoor monitoringLocked monitoringDimensions compatible to 351U80Standardsand ComplianceFactory tested: 1,000,000 cyclesCE Certified appliedEltVTR applied (german directiveNFS 61937 applied (french standard)Suitable for fire door application (note domestic standards)FunctionAs soon as the door stays in aligned position with the lock, the prism shaped bolt moves motorized into the strike plate and locks the door. As long as power is on, the bolt is locked.As soon as the power is switched off, the bolt gets immediately unlocked and the door is accessible. When moving the door, the V-shaped strike plate slides the bolt in – without electric power.Technical dataVoltage: 12V DC – 48V DCDIN-direction:UniversalMonitoring contact (RR):YesDiode (05):YesAnchor contact: YesFail-unlocked:YesBreak-in resistance: 5000NMaterial housing: Stainless steelmaterial bolt: SteelOperating temperature range:-15 °C to 50 °CBolt throw:10 mmInstallation position: UniversalRebate clearance: 3mm (2mm – 4,5mm)Max. pre-load unlocking:5000 NHeight: 200mmWidth: 25mmDepth: 42mmOperating voltage: ± 10%Max. current consumption in continuous operation 12 V DC:480 mAMax. current consumption in continuous operation 24 V DC:270 mAMax. current consumption in continuous operation 48 V DC:150 mAMax. current consumption with motor operation (approx. 1 s) 12 V DC:880 mAMax. start current consumption with motor operation (approx. 1 s) 24 V DC:270 mAMax. current consumption with motor operation (approx. 1 s) 48 V DC:270 mA
